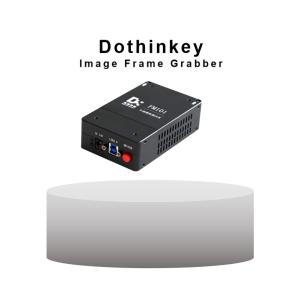

Dothinkey FM101 Image Grabber Automotive Calibration Aging
1.Product Overview
This single-camera test solution supports automotive module testing via FAKRA coaxial (single-ended) or STP differential interfaces.
2.Key Features
Wide power range: 0.8V-18V module power supply
Real-time monitoring
Current consumption
Frame rate
Frame rate
Full image capture & storage
Supports POC power supply with voltage measurement
Dedicated LED power supply for vehicle modules
Flexible decoupling options (compatible with MAXIM/TI and most market solutions)
3.Schematic diagram of the connection between the MAXIM/TI serializer solution vehicle-mounted module and FM101
4.Interface distribution diagram
5.Product size drawing
