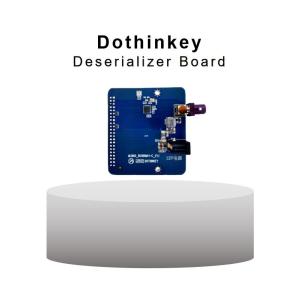

MU960_Bu18RM41-C Deserializer Support Image Grabber With Standard MIPI Interfaces
1)Use technical indicators
| Electrical specification | |
| Power supply (DC socket power supply mode) | DC12V/1A |
| Compatibility characteristics of deserializer board modules | |
| Module interface | Rohm Clockless Link-BDtm coaxial |
| Clockless Link-BDtm rate | 3.6G/Lane(max) |
| Other interface descriptions | |
| Support test kits with standard MIPI interfaces | |
| Sensor communication index | |
| I2C rate | 100KHz~1MHz |
| BU18RM41-C IO Level standard | 1.8v |
| POC power supply | |
| Support the power supply mode | 12V is provided by the DC socket |
2)Important Notice Before Use
POC Power Supply
The decoder board requires an external 12V/1A power adapter via the DC jack for POC power supply.
Decoder Chip Power (BU18RM41-C)
Only 1.8V DOVDD from the test box is required.
Do not exceed this voltage to avoid damaging the chip.
Interface Compatibility
Features a 44-pin dual-row header (2.54mm pitch) for standard MIPI interface connection with our test boxes.
